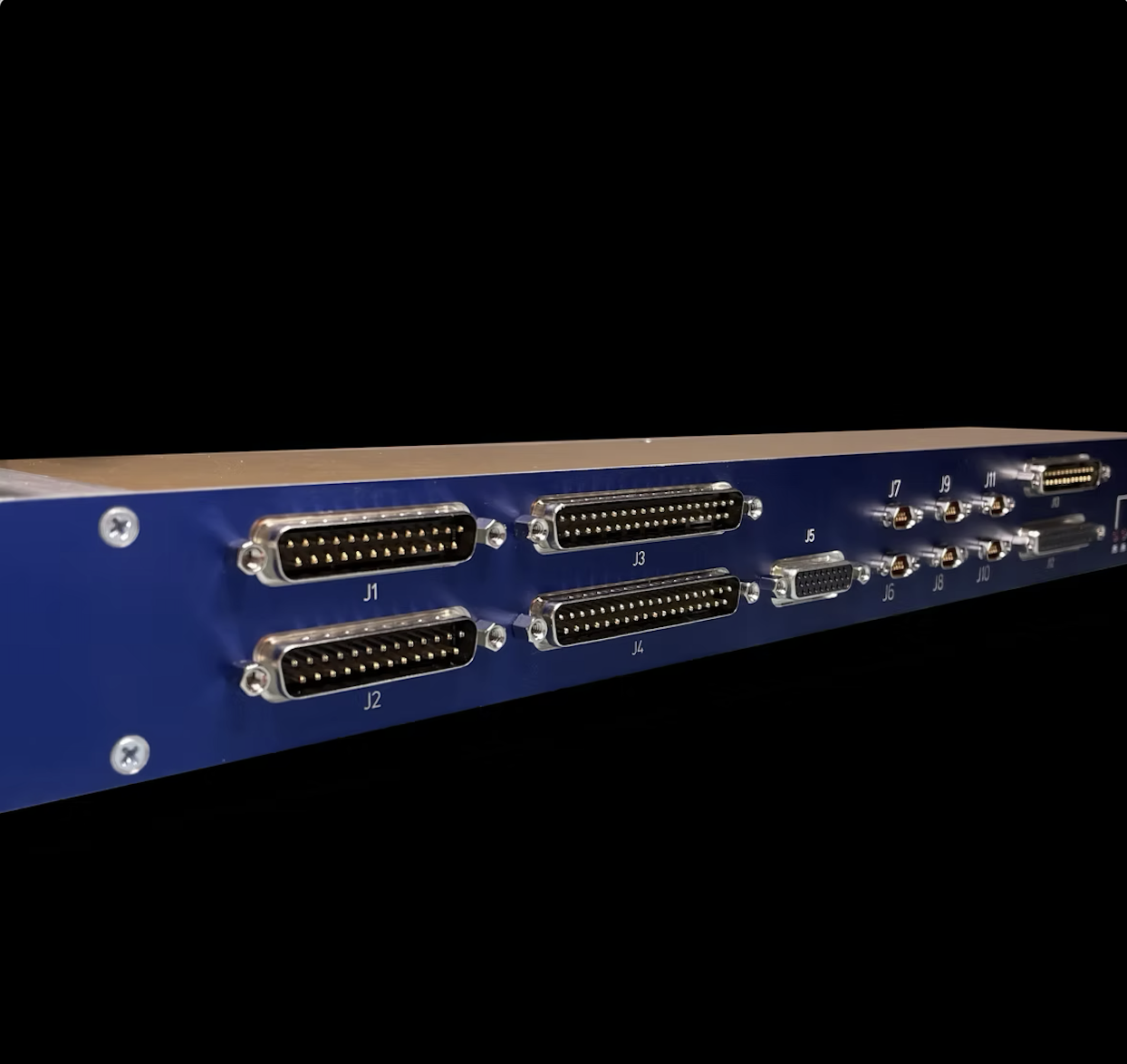

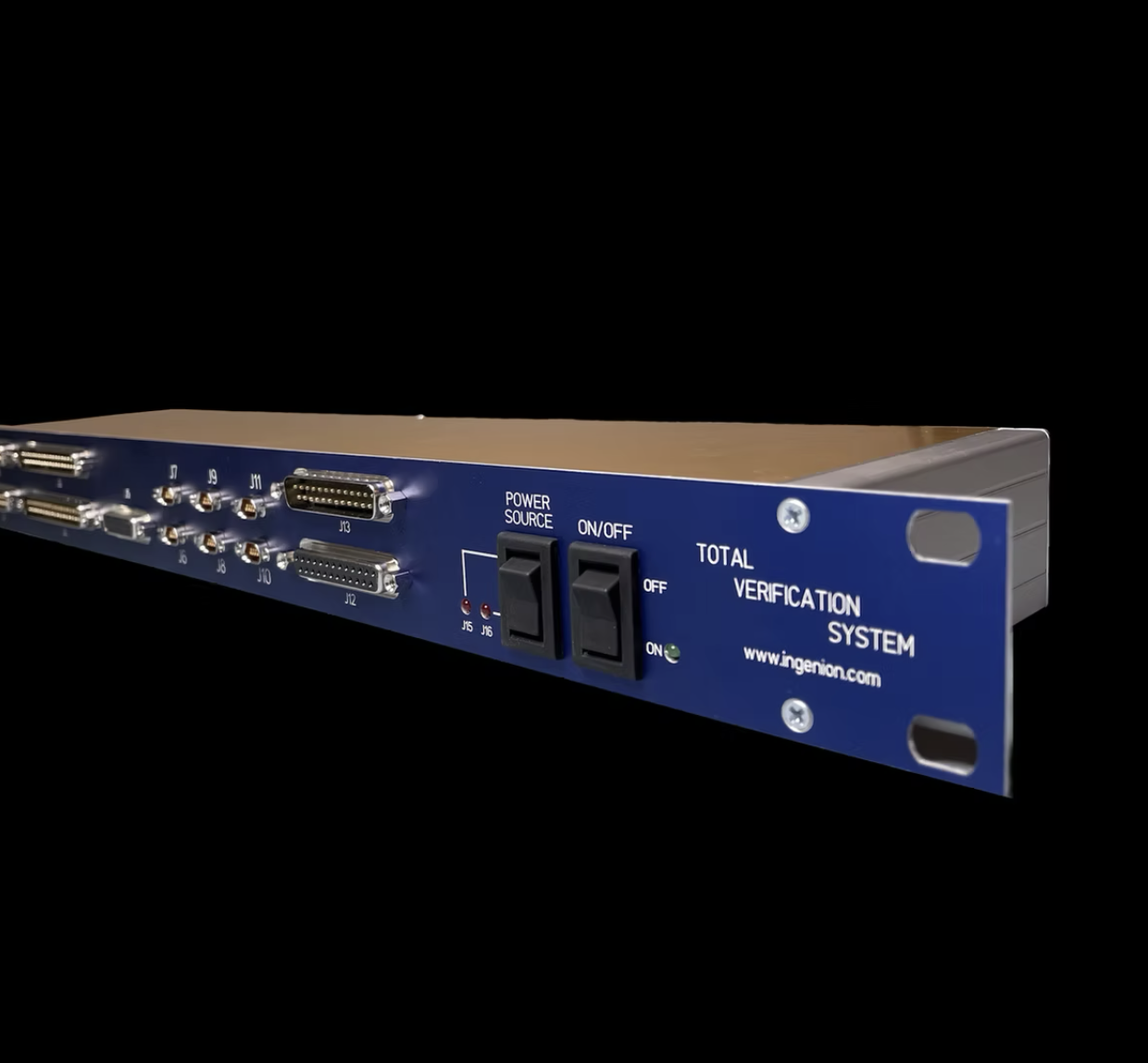

TVS with Spartan 7 A200 FPGA, USB 3.0
Total Verification System test equipment with Opal Kelly XEM7310-A200 board. Includes Industrial USB 3.0 cable with screw locks and a 5V, 12.5W power adapter. Includes rework to modify all RS422 drivers/receivers to LVDS. Opal Kelly Front Panel Application and self-test files available here.
Item Options
(please list these when adding to cart)
Rework:
minor rework - part subsitutions (eg, swapping out some RS422 for LVDS, changing resistance values, etc) - Adds $300
major rework - lifting pins, adding new parts to the design, white-wiring (this option comes with a schematic of the modifications) - Add $500
Shipping Preferences:
Shipped via UPS unless otherwise specified
PO Line:
Specify customer PO line item, if desired (shows up on packing slip)
